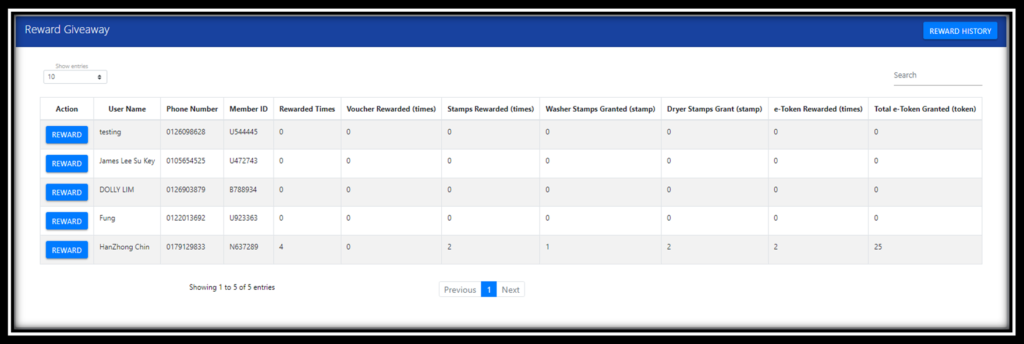

Once the admin clicks on the User Reward from Figure 3a, it will redirect the admin to the Reward Giveaway page. The role of Reward Giveaway page is to let the admin to giveaway specific reward to the customers, either voucher, e-token, or stamp. The details will be displayed as in Action, User Name, Phone Number, Member ID, Rewarded Times, Voucher Rewarded (times), Stamp Rewarded (times), Washer Stamp Granted, Dryer Stamp Granted, e-token Rewarded (times), total e-token Granted (tokens).
By using the functions of search bar, admin will be able to search the customer’s user name for relevant details.
Table Items | Description |
---|---|
Action | This column shows button for Admin to provide the customers with rewards |
User Name | This column shows the user name of customer |
Phone Number | This column shows the phone number of customer |
Member ID | This column shows the member ID of customer |
Rewarded Times | This column shows the total reward was received by the customers. (Total of voucher, Stamp, and e-token) |
Voucher Rewarded (times) | This column shows the total number of occurance that voucher was rewarded to the customer |
Stamp Rewarded (times) | This column shows the total number of stamp was rewarded to the customer |
Washer Stamp Granted | This column shows the total number of washer stamp was rewarded to the customer |
Dryer Stamp Granted | This column shows the total number of dryer stamp was rewarded to the customer |
e-Token Rewarded (times) | This column shows the total number of occurance that e-Token was rewarded to the customer |
total e-Token Granted (tokens) | This column shows the total number of e-Token was rewarded to the customer |
Search Bar

Once the admin type specific user name on the search bar the result will be filtered through it. There is an example showed above. If the admin type “my name” and the results will be filtered out “testing” only.
Reward system

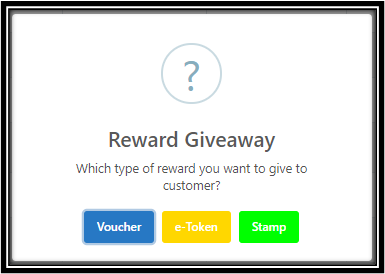

After clicks on the Action (Blue Button) on Figure 3.6a, there will have a pop-up box to let the admin to choose which reward to give to the customer. It’s either Voucher, E-Token, or Stamp.
Voucher reward

After admin clicks on the Voucher (Blue Button) on Figure 3.6.2a, there will have a pop-up box to let the admin to key in the details to further finish the reward giveaway. Voucher reward can be used by both machines. (Washer and dryer)

After admin clicks on the Flat (RM) from Figure 3.6.2a.1, there will have to selection to let the admin to choose which type of discount to give to customer.
E-token reward

After admin clicks on the E-token (Yellow Button) on Figure 3.6.2a, there will have a pop-up box to let the admin to choose how many e-token to give to the user.
Stamp reward

After admin clicks on the Stamp (Green Button) on Figure 3.6.2a, there will have a pop-up box to let the admin to choose how many washers and dryer stamp to give to the user.
Reward History

When the admin click on the Reward History button that on the top right corner of reward giveaway page, it will redirect the admin to the reward history page. In this page, admin can view all the reward history. Admin also can view specific type of reward history such as voucher, stamp, or token. The reward history details will be displayed including user name, phone number, member ID, reward type, voucher ID, voucher amount, number of washer stamp, number of dryer stamp and e-Token amount.
Table Items | Description |
---|---|
User Name | This column shows the user name of customer |
Phone Number | This column shows the phone number of customer |
Member ID | This column shows the member ID of customer |
Reward Type | This column shows the type of reward given to the customer (voucher, token, stamp) |
Voucher ID | This column shows the voucher ID that rewarded to the customer |
Voucher Type | This column shows the type of the voucher was rewarded to the customer (flat, rate) |
Voucher Amount | This column shows the value of the voucher that rewarded to the customer |
Washer Stamp | This column shows the number of washer stamp reward given to the customer |
Dryer Stamp | This column shows the number of dryer stamp reward given to the customer |
e-Token Amount | This column shows the total amount of e-Token reward given to the customer |
